1801 W. Lea St.
Carlsbad, NM 88220

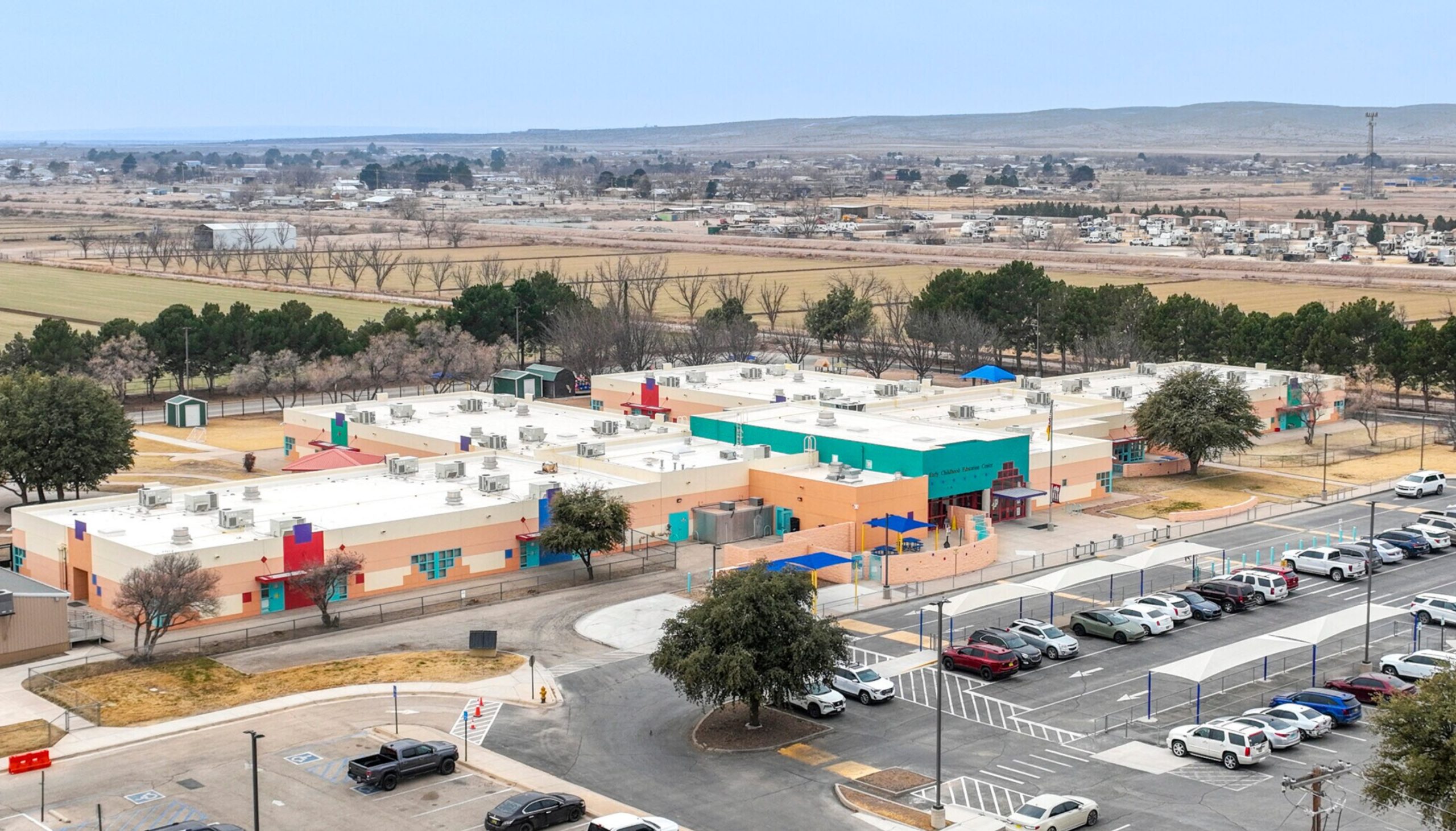

Building and Location: Early Childhood Education Center, 1801 W. Lea St. Carlsbad, NM 88220
Roof Sections Surveyed: 1
Square Footage: Approximately 49,680
Survey Date: August 12, 2024
Roof Inspection Survey Time: 8:00 pm
Daytime Weather Conditions: Partly Cloudy
Last Recordable Rainfall: Greater than 3 days
Weather Conditions at Survey Start Time: Partly Cloudy.
Ambient Temperature at Survey Start Time: 83.0° F
Imager Used: Vevor SC240N

Steel deck – 3 inches ISO insulation – Dens deck –  TPO Full Fabric Acrylic Coating System

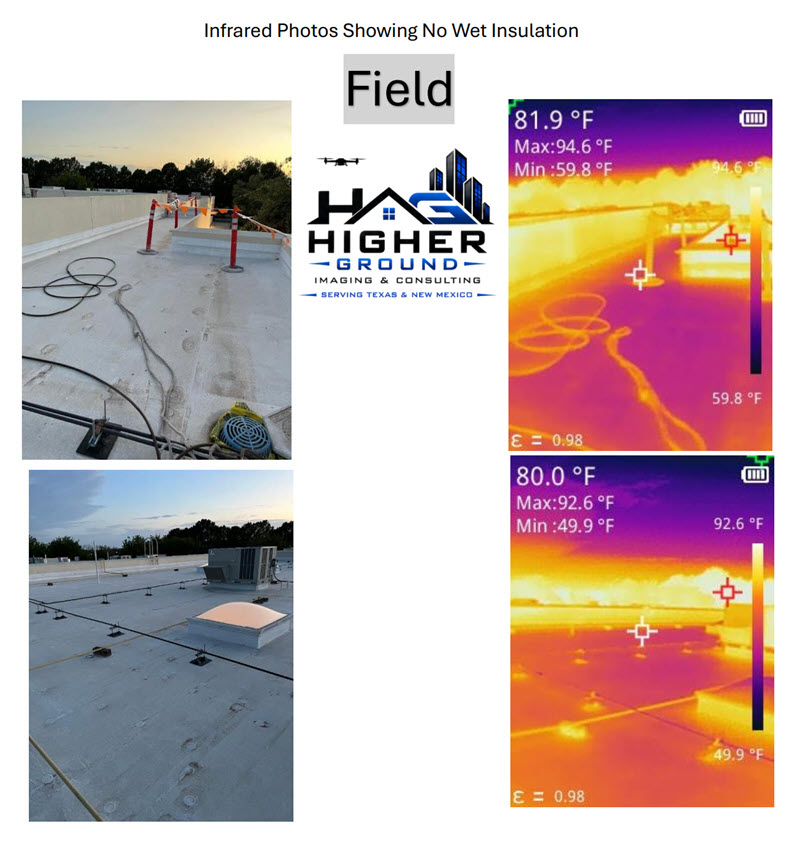

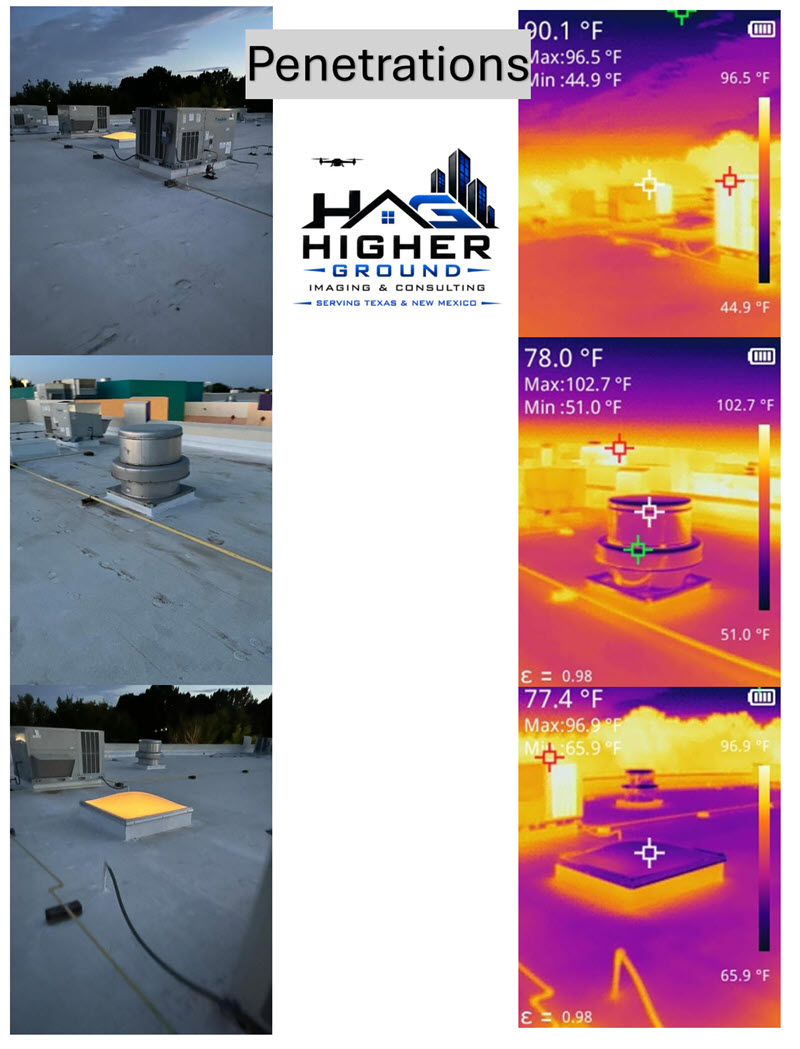

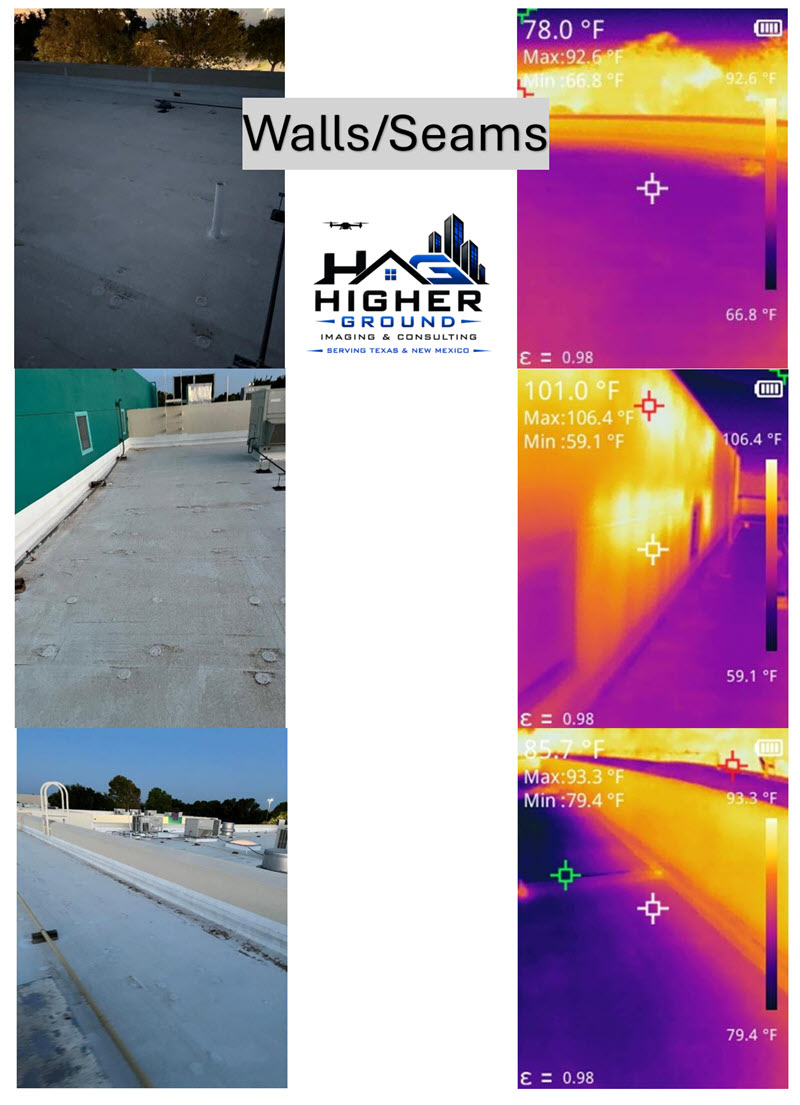

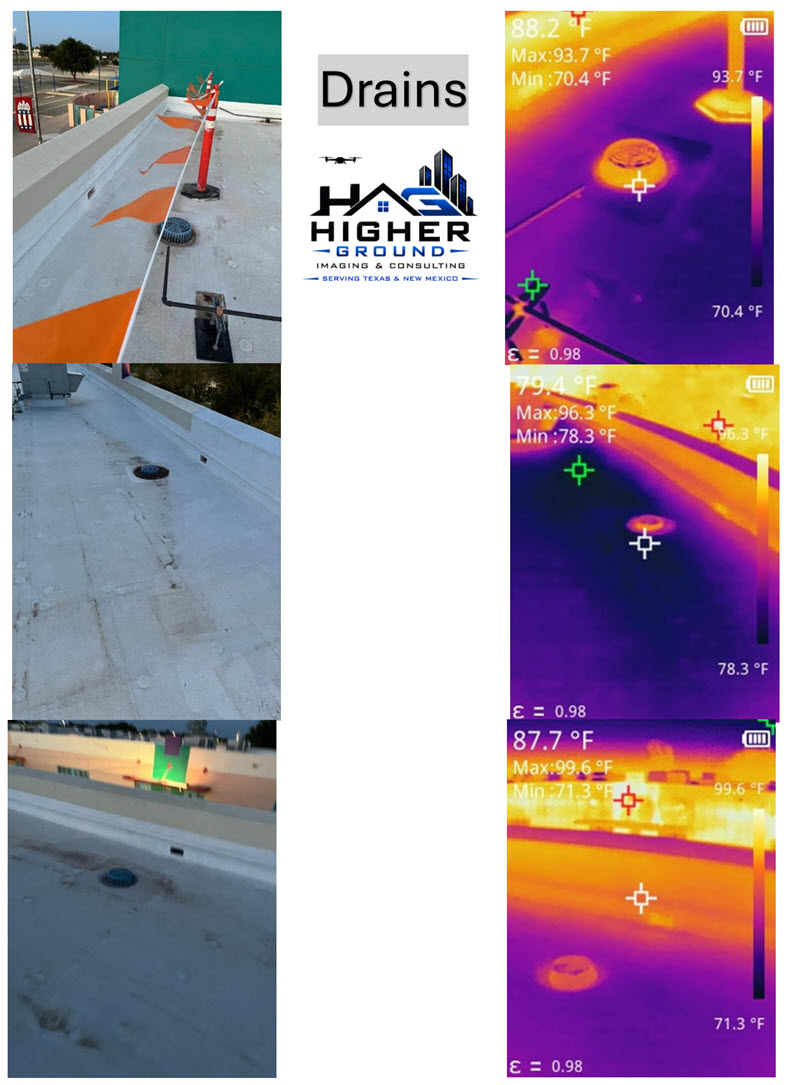

A total of approximately 49680 sq. ft. were surveyed over the full fabric acrylic roof system. No areas of
moisture infiltration were found within the roof system during the infrared roof survey. One roof core was
taken during the survey and showed dry insulation.
Inspection complies with ASTM Standard C1153 – 10 “Standard Practice for Location of Wet Insulation in
Roof Systems Using Infrared Imaging”
